Boeing B737/100-900, XP & BBJ

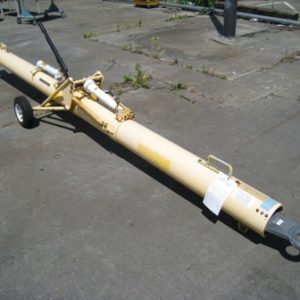

The B737/100-900 aircraft towbar is fabricated to withstand the forces of pushback and towing operations when attached to the nose gear of a Boeing 737-100/200/300/400/500/600/700/800/900 or BBJ series aircraft.
Method of Operation: Towing vehicle is connected to bar.
Type of Material: Steel square tubing with fabricated steel Head.
Features: Heavy-duty steel, hydraulic lift kit
Specification:
Fully assembled length 175 inches
Height Measured from Clamp (wheels down) 13 inches
Max Height Measured from Clamp (wheels up) 40 inches
Width Tire to Tire – 26 inches
Comparable with:
NSN: 1730-01-473-3570
Tronair Custom 737 towbars, part numbers 01-1323-0000, 01-1165-0012, 01-1319-0000, 01C3000-0100, and 01-1246-0010.
Category: Boeing Towbar
